Details

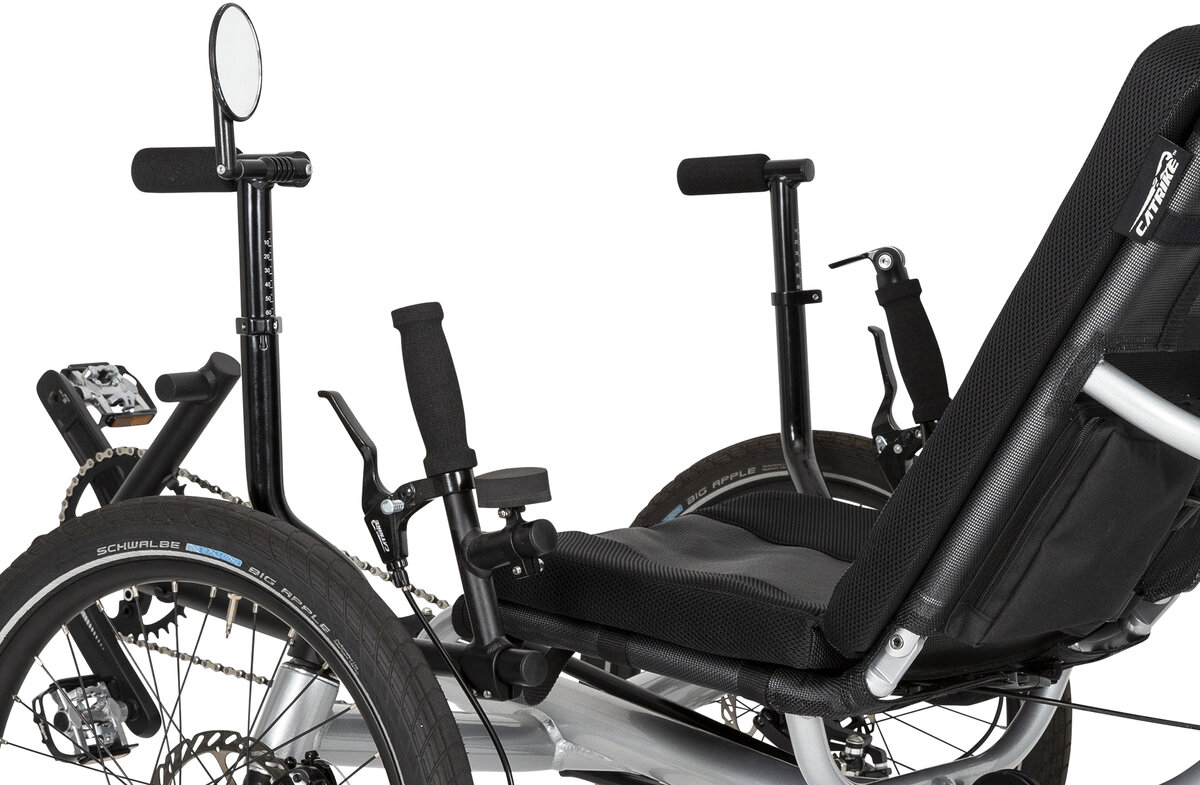

The all-new MAX offers a higher/wider seat and incorporates a larger diameter Cross-Member and wide sturdy rims to accommodate 425 lbs of rider and gear weight. In addition, it is equipped with Schwalbe Big Apple tires, 1x11 SRAM drive train and the new Catrike Assist Bars that help support the rider when getting in and out of the seat. It is the most robust model in our line and has all the features you have come to expect on a Catrike: Avid disc brakes, signature hand rest, Catrike Peace Boom, adjustable seat angle, locking brake levers and Ackerman Steering. Enjoy fun, adventures and freedom aboard the Catrike MAX!
US | metric | |
---|---|---|
Wheel Base | 40 in | 1880 mm |
Wheel Track | 34 in | 864 mm |
Total Width | 37.25 in | 946 mm |
Total Length** | 74 in | 1879 mm |
Seat Angle | 47/57 deg | |
Weight | 40 lb | 18 Kg |
Seat Height | 14.25 in | 362 mm |
Seat Width | 16 in | 406 mm |
BB Height** | 16.25 in | 414 mm |
Ground Clearance | 6 in | 152 mm |
Total Height | 32.25 in | 819 mm |
Height w/ Seat Folded | 25.25in | 641 mm |
Turning Circle | 14.5 ft | 4.4 m |
Turning Radius | 7.25 ft | 2.2 m |
Rider Weight Limit*** | 425 lb | 193 Kg |
Rider X-Seam Range | 39/46 in | 99/117cm |
Specs
Axles | 20mm Front QR Thru Axle, 12x142 Rear Thru Axle |
---|---|
Tires | 406 Schwalbe Big Apple Performance 2.0 |
Bottom Bracket | FSA Road MegaExo |
Crankset | FSA Omega Abs 165mm |
Chainrings | FSA 42T |
Shifters | SRAM 500 TT Bar End Shifter |
Rear Derailleur | SRAM APEX 11-Speed |
Cassette/Freewheel | SRAM 11/42 11 Speed |
Chain | KMC e11 |
Brakes | Avid BB7 Disc Brakes |
Brake Levers | Catrike Locking Brake Levers |
Tape/Grips | Rear Fender, Flag Mount & Flag, Mirrycle Rear View Mirror, Multi Purpose Clipless Pedals, Computer Sensor Mount, No Brake Steer, Self Centering Steering, Ackermann Steering Compensation, Structural Front Boom, Quick-Release Indexing Boom Clamp, Aluminum Rod Ends, Adjustable Assist Bars |
Headset | FSA Zero Stack |
* Subject to change without notice.
Part Numbers
Option | MPN | Store SKU |
---|---|---|
Lava Red / Standard | CT.MAX.23.LRD | 745889067033 |
